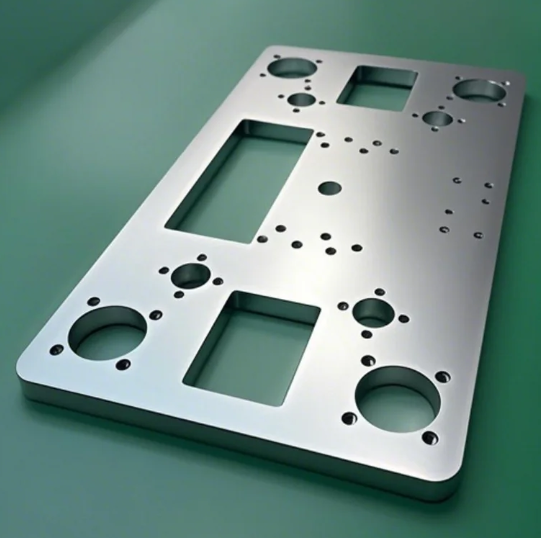

Long Aluminum Plate CNC Machining Process

The Long Aluminum Plate CNC Machining Process is a modern manufacturing method used to shape and finish long aluminum plates with high precision. These plates are widely used in industries such as construction, automotive, aerospace, transportation, and industrial equipment. Because these applications require accurate dimensions and smooth surfaces, CNC (Computer Numerical Control) machining plays an important role in producing reliable parts.

This article explains the full process in simple language, including its significance, step-by-step procedures, tools used, common challenges, and useful tips. It also naturally includes key phrases such as steps in long aluminum plate CNC machining, tools for long aluminum plate CNC machining, challenges in long aluminum plate CNC machining, tips for long aluminum plate CNC machining, and significance of CNC machining for long aluminum plates.

Introduction to Long Aluminum Plate CNC Machining Process

Long aluminum plates are strong, lightweight, and resistant to corrosion, making them ideal for large structures and precision components. However, working with long plates is not easy using manual methods. CNC machining solves this problem by using computer-controlled tools to cut, drill, and shape aluminum accurately.

This process ensures consistent quality, reduces human error, and improves production efficiency. It is especially important when producing parts that must fit perfectly in large assemblies.

Significance of CNC Machining for Long Aluminum Plates

Precision in Large-scale Applications

The significance of CNC machining for long aluminum plates is mainly seen in its high precision. In construction, for example, long aluminum plates are used in curtain wall systems of tall buildings. These panels must align perfectly to ensure both safety and appearance.

CNC machining allows manufacturers to achieve very tight tolerances. This reduces the need for adjustments on-site. In one large building project, CNC-machined aluminum plates helped ensure smooth installation, improved structural alignment, and created a clean architectural finish.

Material Optimization

Another important benefit is efficient material use. CNC machines follow exact cutting paths, which reduces waste.

For example, in automotive production, long aluminum plates are often used for lightweight structural parts. By using CNC machining, manufacturers can cut parts with minimal leftover material, helping reduce cost and improve sustainability.

Steps in Long Aluminum Plate CNC Machining

Design and Programming

The process begins with CAD (Computer-Aided Design). Engineers create a detailed 2D or 3D model of the aluminum part. After that, CAM (Computer-Aided Manufacturing) software converts the design into machine instructions.

These instructions include toolpaths, cutting speed, feed rate, and depth of cut. For complex aerospace parts, programmers often need to carefully optimize toolpaths to ensure both accuracy and surface quality while avoiding tool stress.

Material Preparation

Before machining starts, the aluminum plate must be inspected. It should be flat, clean, and free from cracks or defects. In some cases, heat treatment like annealing is used to improve machinability.

Proper preparation ensures stable machining and reduces the risk of errors. A poorly prepared plate may cause uneven cutting or dimensional inaccuracies during processing.

Machining Operations

Milling

Milling is commonly used to shape surfaces, create grooves, and form complex features. Carbide end mills are often used because they can cut aluminum efficiently.

Higher cutting speeds with controlled feed rates usually produce smoother surfaces. This is a key part of achieving high-quality results in aluminum machining.

Drilling

Drilling is used to create precise holes in long aluminum plates. High-speed steel (HSS) or carbide drill bits are commonly used.

Coolant is important during drilling to reduce heat and prevent tool wear. Proper feed control also helps avoid rough edges or drill breakage.

Cutting

Cutting is used to shape or shorten the aluminum plate. Methods include saw cutting and laser cutting, depending on thickness and precision needs.

Laser cutting offers higher precision, while saw cutting is more cost-effective for simpler tasks.

Finishing Operations

After machining, finishing processes improve appearance and durability. Common methods include polishing, anodizing, and powder coating.

For example, anodized aluminum plates are often used outdoors because they resist corrosion and maintain a clean, professional look for a long time.

Tools for Long Aluminum Plate CNC Machining

Cutting Tools

Tools for long aluminum plate CNC machining include carbide end mills, drills, and cutters. Carbide tools are widely used because they are strong and wear-resistant.

Tool geometry also matters. The rake angle and clearance angle affect cutting performance, chip removal, and surface finish. A well-designed tool can significantly improve machining efficiency.

Coolants and Lubricants

Coolants are essential in aluminum machining. They reduce heat, prevent tool damage, and improve surface quality.

Water-soluble coolants are commonly used. For example, during high-speed drilling, coolant helps keep the drill bit cool and prevents overheating, which improves tool life and accuracy.

Challenges in Long Aluminum Plate CNC Machining

Deflection and Vibration

One of the main challenges in long aluminum plate CNC machining is deflection. Because the plate is long, it may bend or vibrate during machining.

This can reduce accuracy and cause uneven surfaces. Using strong fixtures and proper support systems helps reduce this problem significantly.

Tool Wear

Aluminum machining can cause tool wear over time, especially during high-speed operations. Worn tools reduce cutting quality and increase production costs.

For example, in mass production, milling cutters may need frequent replacement if not properly maintained.

Heat Generation

Heat is another challenge. Excess heat can cause thermal expansion of the aluminum plate, leading to dimensional errors.

Using coolants and adjusting cutting speed helps control heat and maintain machining accuracy.

Tips for Long Aluminum Plate CNC Machining

Optimize Cutting Parameters

One of the most important tips for long aluminum plate CNC machining is to adjust cutting speed, feed rate, and depth of cut correctly.

Proper parameter selection improves surface quality and reduces tool wear. For example, lowering feed rate while increasing spindle speed can improve finishing results.

Use Appropriate Fixturing

Strong fixturing is essential to hold long aluminum plates in place. Without proper support, vibration and movement can affect accuracy.

Custom fixtures help stabilize the workpiece and improve machining consistency.

Regular Tool Maintenance

Regular inspection and maintenance of tools help ensure stable production. Sharp and well-maintained tools produce better surface finishes and reduce machine load.

A simple maintenance schedule can prevent unexpected tool failure and production delays.

Conclusion: Mastering the Long Aluminum Plate CNC Machining Process

The Long Aluminum Plate CNC Machining Process is essential for producing accurate, high-quality aluminum components used in many industries. It combines careful design, precise programming, proper material preparation, advanced machining operations, and effective finishing techniques.

By understanding the steps in long aluminum plate CNC machining, selecting the right tools for long aluminum plate CNC machining, and addressing challenges in long aluminum plate CNC machining, manufacturers can significantly improve production quality and efficiency.

With the right approach and attention to detail, businesses can achieve better results, reduce waste, and ensure long-lasting product performance. Applying these tips for long aluminum plate CNC machining can help improve both productivity and product quality in real-world manufacturing environments.
