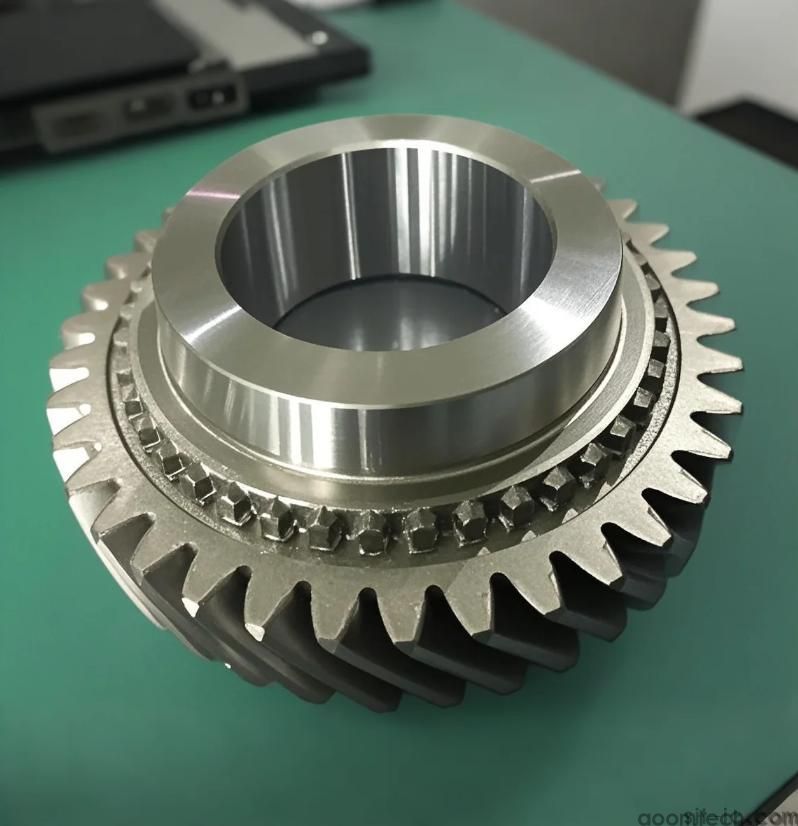

The CNC Machining Process for Metal Gears is a modern manufacturing method used to produce high-precision gears for machines and equipment. Metal gears are essential parts in mechanical systems because they transfer power, control speed, and ensure smooth movement between components. CNC (Computer Numerical Control) machining makes it possible to produce these gears with high accuracy, consistency, and efficiency.
Accurately machined gears are widely used in industries such as automotive, aerospace, robotics, industrial machinery, and energy systems. When gears are made correctly, machines run more smoothly, last longer, and perform better under load.
Metal gears play a key role in almost every mechanical system. They help transfer torque and motion between rotating shafts. If a gear is not manufactured correctly, it can cause vibration, noise, and even system failure.
CNC machining provides a reliable solution for producing gears with precise tooth shapes and exact measurements. This accuracy ensures better power transmission, reduced wear, and improved durability. Compared to traditional manual methods, CNC machining offers better repeatability and higher production quality.
The process begins with design. Engineers use CAD (Computer-Aided Design) software to create a detailed 3D model of the gear. This design includes important details such as tooth profile, module, pressure angle, and load requirements.
Next, CAM (Computer-Aided Manufacturing) software converts the design into machine instructions. These instructions define toolpaths, cutting speed, feed rate, and depth of cut. For example, when designing a spur gear with fine teeth spacing, the program must ensure equal tooth distribution and smooth transitions between cuts to avoid imbalance.
This step is critical because even a small error in programming can affect the final gear performance.
Choosing the right material is very important in gear manufacturing. Common materials include alloy steel, carbon steel, stainless steel, aluminum, and brass.
For heavy-duty applications like automotive transmissions, alloy steel is often used because of its high strength and wear resistance. For lightweight systems, aluminum may be preferred due to its low weight and good machinability.
Material selection directly affects machining conditions. Harder materials require stronger cutting tools, slower speeds, and better cooling systems to prevent tool damage and overheating.
Different gear types require different cutting tools. Common tools include hob cutters, gear shaper cutters, and milling cutters. For example, gear hobbing is often used for external gears, while gear shaping is suitable for internal gears.
Proper tool setup ensures accuracy. If a hob cutter is not aligned correctly, it may produce uneven tooth shapes, leading to poor gear meshing and noise during operation. Therefore, calibration and alignment are essential before machining begins.
Machine setup involves adjusting parameters such as spindle speed, feed rate, and cutting depth based on the gear design and material type.
Fixturing is equally important. The workpiece must be firmly secured to prevent movement during machining. A well-designed fixture improves stability and ensures consistent cutting results. For example, a custom fixture for large gears helps distribute clamping force evenly, preventing deformation during machining.
Gear hobbing uses a rotating cutting tool called a hob. The hob gradually cuts into the rotating gear blank to form teeth. This method is fast and widely used for producing external gears.
Controlling speed and feed rate is essential. Proper adjustment ensures uniform tooth depth and smooth surface finish.
Gear shaping uses a reciprocating cutting tool to form gear teeth. It is especially useful for internal gears and complex gear structures.
For example, internal gears used in automatic transmissions are often produced using gear shaping because it can reach inside the gear structure and cut accurately.
Milling is used for custom or prototype gears. A milling cutter shapes each tooth individually. Although slower than hobbing, it offers flexibility for non-standard designs.
This method is commonly used in small-batch production where unique gear shapes are required.
Heat treatment improves the mechanical properties of metal gears. Common processes include quenching, tempering, and carburizing.
For example, carburizing increases surface hardness while keeping the core tough. This is useful for gears that must handle heavy loads and repeated stress. Heat treatment improves wear resistance, strength, and fatigue life.
After machining and heat treatment, finishing processes such as deburring are performed to remove sharp edges and improve surface quality.
Quality checks include measuring gear dimensions, tooth profile accuracy, and surface roughness. Tools such as gear measuring machines and hardness testers are used.
Quality control in CNC metal gear machining ensures that only defect-free gears are used in final assemblies, reducing the risk of machine failure.
Precision is the most important factor in gear manufacturing. Even small errors in tooth spacing or alignment can cause noise, vibration, and energy loss.
The CNC Machining Process for Metal Gears helps maintain high precision through computer-controlled cutting operations. In high-speed motors, precision gears significantly improve efficiency and reduce mechanical wear.
Cutting tools gradually wear out during machining. Worn tools can reduce accuracy and surface quality.
Signs of tool wear include rough surface finish, increased cutting force, and dimensional variation. Regular inspection and timely replacement help maintain consistent quality during production.
Production volume affects the choice of machining method. For large-scale production, gear hobbing is often more efficient and cost-effective. For small batches or prototypes, milling is more flexible and economical.
This balance helps manufacturers reduce cost while maintaining quality across different production needs.
In-process inspection involves checking gear dimensions and tool conditions during machining. This helps identify problems early and avoid large-scale defects.
For example, monitoring tool wear during production can prevent incorrect tooth shapes from being produced. This improves efficiency and reduces material waste.
Final inspection ensures that finished gears meet all design and performance requirements. This includes dimensional checks, surface testing, and functional testing.
Only gears that pass all tests are approved for use. In some cases, testing may reveal hidden defects such as internal material flaws, which helps prevent failure in critical systems like automotive transmissions or industrial machinery.
The CNC Machining Process for Metal Gears involves several important steps, including design, material selection, tooling, machining, heat treatment, and quality control. Each step plays a vital role in ensuring the final gear performs correctly and reliably.
By understanding steps in CNC machining metal gears, applying proper key considerations in CNC gear machining, and maintaining strict quality control in CNC metal gear machining, manufacturers can produce high-quality gears that improve machine performance and durability.
Careful planning and attention to detail in each stage will lead to better accuracy, longer service life, and more efficient mechanical systems. Reviewing and improving existing machining processes can further enhance production quality and reduce costs.
