CNC Bevel Gear Machining

Introduction to CNC Bevel Gear Machining

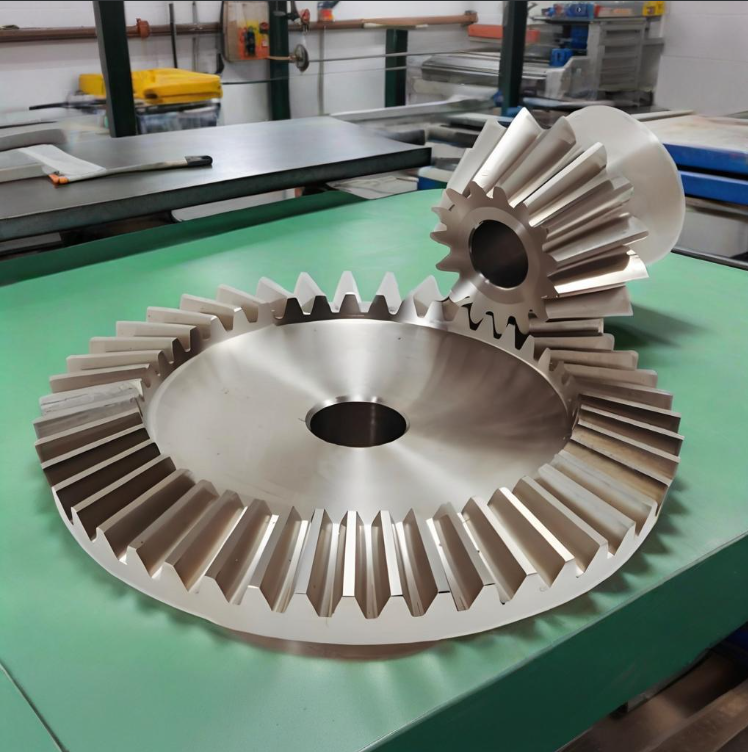

Bevel gears are important mechanical parts used to transmit power between intersecting shafts, usually at a 90-degree angle. They are widely used in automotive systems, industrial machines, marine equipment, and power tools. Today, modern production relies heavily on CNC Bevel Gear Machining, which uses computer-controlled machines to create highly accurate gear shapes.

The significance of bevel gears is clear in real-world systems such as automotive differentials, where smooth and reliable power transfer is required. CNC machining has improved the quality and consistency of these gears, making machines more efficient, quieter, and longer-lasting.

Importance of CNC in Bevel Gear Machining

Precision Manufacturing

CNC technology allows manufacturers to produce bevel gears with extremely high precision. The machine follows digital instructions to control tooth shape, cone angle, and pitch diameter with great accuracy. This precision ensures perfect meshing between gears and smooth power transmission.

In aerospace applications, for example, bevel gears must handle high speeds and heavy loads without failure. CNC machining ensures every gear meets strict tolerance requirements, improving safety and performance.

Importance of CNC in bevel gear machining is especially clear in industries where even small errors can lead to system failure.

Customization Capabilities

CNC machining also allows full customization of bevel gears. Engineers can design gears with special tooth shapes, non-standard sizes, or unique gear ratios based on application needs.

For instance, a specialized industrial robot may require a custom bevel gear with an unusual tooth profile to improve motion accuracy. CNC systems can produce these complex designs without changing the manufacturing process significantly.

Steps in CNC Bevel Gear Machining Process

Design and CAD/CAM Programming

The process starts with CAD (Computer-Aided Design), where engineers create a detailed 3D model of the bevel gear. Important factors such as load capacity, shaft angle, and gear ratio are considered during design.

Next, CAM (Computer-Aided Manufacturing) software converts the design into machine instructions. This includes tool paths, cutting speeds, and spindle settings.

For complex designs, such as high-precision spiral bevel gears, programming must carefully control tool movement to ensure smooth tooth geometry and avoid collision or deformation.

Steps in CNC bevel gear machining process always begin with accurate digital planning to reduce errors in later stages.

Material Selection and Preparation

Material choice is critical in gear performance. Common materials include alloy steel, carbon steel, and case-hardened steel. Each material offers different levels of strength, hardness, and wear resistance.

Before machining, materials may undergo heat treatment like annealing to improve cutting performance. For harder steels, slower cutting speeds and stronger tools are required to prevent tool wear.

Machining Operations

Turning

Turning is used to shape the basic gear blank. It forms the outer diameter and cone surface. Carbide cutting tools are often used for accuracy and durability. Harder materials require slower speeds to maintain surface quality.

Milling

Milling is the key process for forming gear teeth. CNC-controlled milling machines use specialized cutters to create precise tooth profiles. Proper alignment and tool selection are essential for accuracy.

Heat Treatment

After machining, gears are often heat-treated to improve hardness and strength. This step increases wear resistance and extends service life, especially in heavy-duty machines like industrial gearboxes.

Finishing Operations

Finishing includes grinding and deburring. Grinding improves surface accuracy, while deburring removes sharp edges. These steps reduce friction and noise during operation and improve gear meshing quality.

Advantages of CNC-Machined Bevel Gears

High-Quality and Reliable Performance

CNC production ensures consistent quality across all gears. Each gear in a batch has the same dimensions and performance level, which is critical for industrial systems.

A large gearbox assembly using CNC-machined bevel gears benefits from smooth operation, reduced vibration, and longer service life.

Advantages of CNC-machined bevel gears include repeatability, stability, and improved mechanical efficiency.

Cost-Effectiveness for Medium to Large Batches

Although setup costs may be high, CNC machining becomes cost-effective in medium and large production runs. Automation reduces labor costs and material waste.

Many manufacturing companies use CNC machining to mass-produce bevel gears while maintaining consistent quality and reducing overall production costs.

Quick Turnaround for Prototyping

CNC systems allow fast production of prototypes. Engineers can quickly test new gear designs and make adjustments without retooling the entire process.

This speeds up product development and reduces time to market for new machinery.

Challenges Faced in CNC Bevel Gear Machining

Meeting Tight Tolerances

Bevel gears require very tight tolerances. Small errors in tooth thickness or angle can affect performance. Factors such as tool wear and heat expansion can cause deviations.

For example, worn tools may produce slightly uneven teeth, leading to vibration during operation. Adjustments must be made quickly to maintain quality.

Challenges faced in CNC bevel gear machining often involve maintaining precision under changing machining conditions.

Tool Wear and Breakage

Hard materials can cause rapid tool wear. Milling cutters may need frequent replacement, increasing production costs. Proper tool selection and cooling systems help reduce wear.

Complex Tooth Geometries

Bevel gears often have complex curved tooth shapes. Programming CNC machines to cut these shapes accurately requires experience and advanced simulation tools.

Spiral bevel gears are especially challenging due to their continuous curved tooth contact surfaces.

Quality Control in CNC Bevel Gear Machining

Inspection of Dimensions and Tooth Profiles

Precision inspection tools such as coordinate measuring machines (CMM) and gear measuring systems are used to check tooth shape, pitch, and cone angle.

Quality control in CNC bevel gear machining ensures that each gear meets design specifications before assembly.

Surface Finish Inspection

A smooth surface reduces friction and wear. Surface roughness testers and visual inspection are used to ensure quality finishing. Poor surface quality can shorten gear life and increase noise.

Performance Testing

Gears are tested under simulated working conditions to evaluate noise, vibration, and load capacity. If problems appear, machining parameters or design settings are adjusted.

Conclusion: Mastering CNC Bevel Gear Machining

CNC bevel gear production plays a key role in modern mechanical systems. It combines precision engineering, automation, and advanced materials to produce high-performance gears.

From design to final inspection, every step in CNC Bevel Gear Machining is important for ensuring quality and reliability. Understanding the process helps manufacturers improve efficiency, reduce costs, and deliver better products.

By considering factors such as material selection, machining accuracy, tool wear, and inspection methods, companies can achieve stable and long-lasting gear performance in real-world applications.
