The CNC Machining of Precision Mechanical Cams is a highly accurate manufacturing method used to produce cam components for modern mechanical systems. Precision mechanical cams are essential parts in machines that convert rotary motion into linear or oscillating motion. They are widely used in engines, robotics, textile machines, packaging equipment, and automated production systems.
Because cams directly control movement timing and motion paths, even a very small error in shape can affect the performance of an entire machine. CNC (Computer Numerical Control) machining helps solve this problem by producing cams with extremely high accuracy, repeatability, and surface quality. As a result, CNC-machined cams improve system efficiency, reduce wear, and increase long-term reliability.
Precision mechanical cams are responsible for controlling motion with exact timing and smooth transitions. The significance of CNC for precision mechanical cam production lies in its ability to produce complex cam profiles that are difficult or impossible to achieve with manual machining.
CNC machining ensures that every cam follows the same digital design, reducing human error and improving consistency. This is especially important in industries like automotive engineering, where cams must operate under high speed and heavy load conditions. A well-machined cam helps reduce vibration, improve efficiency, and extend machine life.
In short, CNC machining of cams ensures performance stability, long service life, and high production efficiency in advanced mechanical systems.
The process begins with digital design using CAD (Computer-Aided Design) software. Engineers create a detailed 3D model of the cam based on motion requirements, load conditions, and system constraints.
Next, CAM (Computer-Aided Manufacturing) software converts the model into machine instructions. This includes toolpaths, cutting speeds, feed rates, and spindle speeds.
The processes in CNC machining precision mechanical cams become especially complex when designing automotive engine cams. For example, an engine cam must be programmed to ensure precise valve timing. This requires special attention to motion curves, smooth transitions, and synchronization between multiple cam profiles. Engineers often simulate the machining process digitally before actual production to avoid errors.
Material choice is critical in cam production. Common materials include alloy steel, stainless steel, and engineering plastics. The selection depends on strength, wear resistance, cost, and application requirements.
High-strength alloy steel is often used in engine cams due to its durability. However, it requires slower cutting speeds and stronger cutting tools. In some cases, heat treatment is applied before or after machining to improve hardness and wear resistance.
Proper material preparation ensures stable machining performance and helps maintain dimensional accuracy during production.
Milling
Milling is the most important process in cam shaping. Carbide milling cutters are commonly used to machine complex cam profiles. The cutting parameters must be carefully controlled to achieve accuracy and smooth surface finish. For intricate profiles, slower cutting speeds are often used to prevent vibration and tool damage.

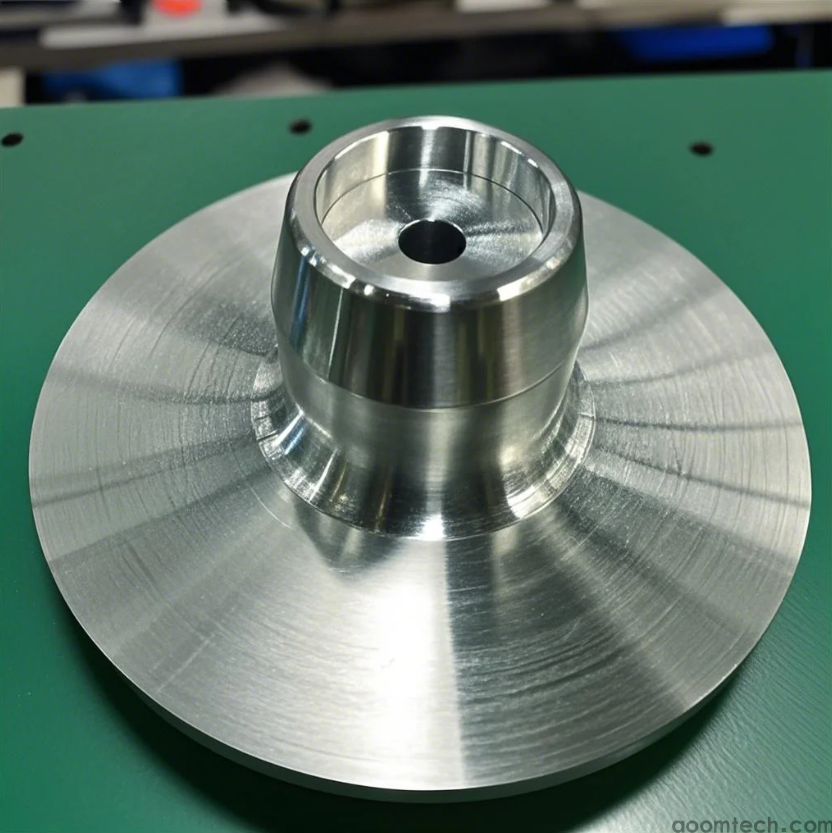

Turning (if applicable)
If the cam includes cylindrical sections, turning operations are used. Proper alignment is essential to maintain concentricity. Even small alignment errors can affect cam rotation accuracy and system performance.
Drilling and Boring (if required)
Mounting holes or positioning holes are created using drilling and boring processes. High-speed steel or carbide drills are commonly used. Coolant is applied to reduce heat and prevent tool breakage. Boring tools are then used to achieve precise hole dimensions and smooth internal surfaces.
After machining, finishing processes such as grinding are often used to improve surface quality and dimensional precision. Heat treatment may also be applied to increase hardness and fatigue resistance.
For example, in robotic systems, a ground and heat-treated cam ensures smooth, stable motion over millions of cycles without significant wear or deformation.
The tooling for CNC machining precision mechanical cams plays a major role in achieving accuracy. End mills are the most common tools used in cam machining.
Ball-nose end mills are used for curved surfaces, while flat end mills are used for flat areas and slots. Carbide tools are preferred because they provide high hardness and long tool life.
For example, when machining a complex cam profile with tight curves, a small-diameter ball-nose end mill may be selected to ensure smooth contour transitions and reduce surface roughness.
Carbide turning inserts with different edge geometries are used depending on material and cutting conditions. The correct tool selection ensures stable cutting and reduces vibration.
For cylindrical cam sections, proper tool geometry helps maintain concentricity and achieve a fine surface finish.
Drilling tools such as coated HSS drills or carbide drills are used for hole creation. Boring bars are used for precision finishing of holes.
For example, titanium nitride (TiN)-coated drill bits improve wear resistance and allow more stable drilling in hardened materials.
The quality control in CNC machining precision mechanical cams begins with dimensional inspection. Tools such as calipers, micrometers, and coordinate measuring machines (CMMs) are used to verify accuracy.
In some cases, in-process inspection helps detect errors early. For example, if a dimension starts drifting due to tool wear, adjustments can be made immediately to avoid producing defective parts.
Cam profile accuracy is critical because it directly affects motion behavior. Special profilometers are used to compare the actual cam shape with the original design.
If deviations are found, additional finishing or re-machining may be required to correct the profile and restore performance accuracy.
Non-destructive testing methods such as ultrasonic testing and magnetic particle inspection are used to detect internal defects like cracks or voids.
This step ensures that only structurally sound cams are used in critical applications such as engines or aerospace systems.
One of the main challenges in CNC machining precision mechanical cams is maintaining accurate cam profiles during long machining cycles. Tool wear and heat generation can cause deviations from the original design.
For example, a worn cutting tool may gradually change the cam profile, requiring frequent tool replacement and process adjustments.
Cams often require machining of hard materials, which leads to rapid tool wear. Carbide tools may break or dull faster when cutting complex profiles under high load conditions.
This increases production costs and may cause delays if not properly managed through tool monitoring systems.
Precision cams require extremely tight tolerances. Even small temperature changes during machining can affect material expansion and cause dimensional errors.
For example, a cam may fail inspection if thermal expansion and programming inaccuracies combine, requiring rework or process optimization.
The CNC Machining of Precision Mechanical Cams is a complex but highly effective manufacturing process that ensures high accuracy, durability, and performance in mechanical systems.
By understanding design processes, material selection, machining operations, tooling strategies, quality control methods, and production challenges, manufacturers can significantly improve cam quality and efficiency.
Whether in automotive engines, robotics, or industrial automation, precision cams play a vital role in motion control. Optimizing CNC machining processes helps ensure reliable performance and long service life of mechanical systems.
To achieve better results, manufacturers should continuously improve tooling strategies, apply strict quality control, and use advanced CNC programming techniques for consistent and precise cam production.
