CNC Machining of High - Precision Molds

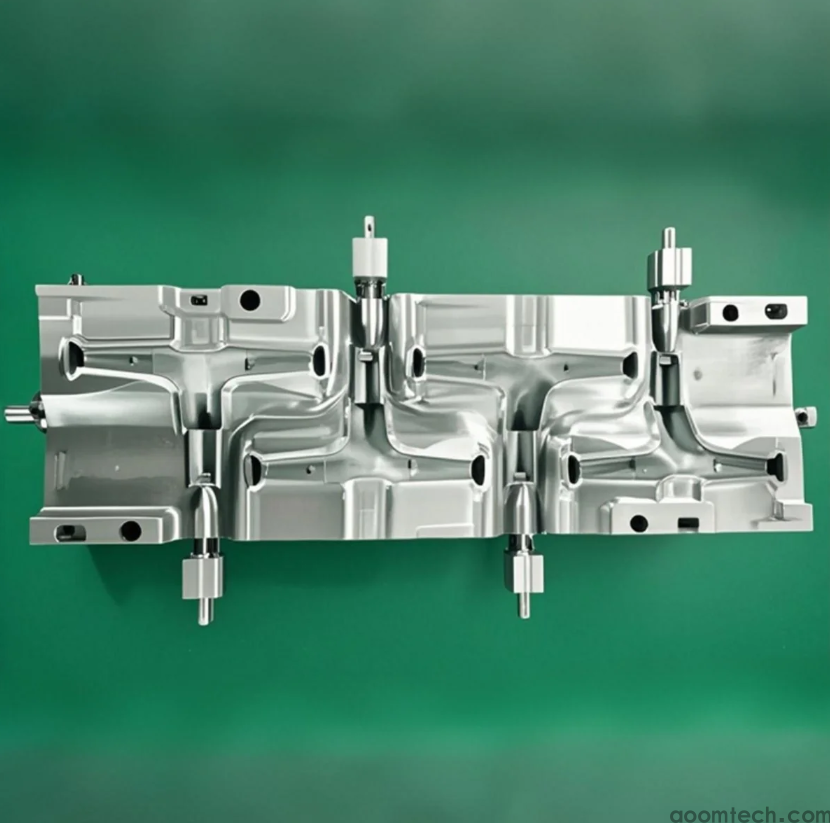

The CNC Machining of High - Precision Molds is a key manufacturing process used to create molds with extremely accurate shapes, tight tolerances, and excellent surface quality. These molds are widely used in industries such as automotive, electronics, medical devices, and plastic injection molding. They help ensure that final products are consistent, reliable, and cost-effective in mass production.

This article explains the full process, including design, machining, tooling, quality control, and common challenges. It also introduces important ideas such as processes in CNC machining high - precision molds, tooling for CNC high - precision mold machining, quality control in CNC machining of high - precision molds, challenges in CNC machining high - precision molds, and the significance of CNC for high - precision mold production.

The Significance of CNC in High - Precision Mold Production

High - precision molds are essential in modern manufacturing because they directly affect product quality and production efficiency. For example, in automotive parts, even a small deviation in mold accuracy can lead to defective components.

The significance of CNC for high - precision mold production lies in its ability to deliver consistent accuracy and repeatability. By using Computer Numerical Control (CNC) systems, manufacturers can produce complex mold geometries that would be extremely difficult or impossible with manual machining.

CNC-machined molds improve production efficiency, reduce waste, and support large-scale manufacturing with stable quality output.

Processes in CNC Machining High - Precision Molds

Design and CAD/CAM Programming

The process begins with Computer-Aided Design (CAD), where engineers create a detailed 3D model of the mold. This model includes dimensions, surface finish requirements, and structural features based on the final product and molding method such as injection molding or die casting.

Next, Computer-Aided Manufacturing (CAM) software converts the CAD model into CNC machine instructions. This includes toolpaths, spindle speeds, cutting depths, and feed rates.

For example, when designing a complex automotive dashboard mold, engineers may need to program multi-axis toolpaths to achieve deep cavities and smooth curved surfaces. Special attention is given to tool collision avoidance and surface finishing strategies.

Material Selection and Preparation

Choosing the right material is critical for mold performance. Common materials include hardened steel, stainless steel alloys, aluminum, and graphite.

Steel alloys are widely used for long production cycles due to their strength and wear resistance, but they require slower cutting speeds and stronger cutting tools. Aluminum is easier to machine and is often used for prototype molds or low-volume production.

Before machining, materials may be cut into blanks and undergo heat treatment to improve hardness and stability. This step directly affects machining difficulty and final mold accuracy.

Machining Operations

Milling

Milling is the most common process in mold manufacturing. It is used to create cavities, cores, and complex 3D shapes. Carbide end mills and ball-nose cutters are widely used for precision work.

Cutting parameters must be carefully controlled. Hard materials require slower cutting speeds and optimized feed rates to reduce tool wear while maintaining surface quality.

EDM (Electrical Discharge Machining)

Electrical Discharge Machining (EDM) is used for features that are difficult to machine with traditional cutting tools, such as sharp internal corners or deep narrow cavities. It removes material using controlled electrical sparks.

Key parameters include discharge current, voltage, and pulse duration. Proper control ensures high precision and smooth surface finish.

Drilling

Drilling is used to create cooling channels, ejector pin holes, and alignment features. High-speed steel (HSS) or carbide drill bits are commonly used.

Coolant application and stable feed control are important to prevent tool breakage and ensure accurate hole positioning.

Finishing Operations

After machining, finishing processes improve mold performance and surface quality. Polishing is commonly used to reduce surface roughness, which helps molded parts release easily and prevents surface defects.

Heat treatment may also be applied to increase hardness and wear resistance. For example, polishing a plastic injection mold cavity can significantly improve the surface quality of final plastic parts.

Tooling for CNC High - Precision Mold Machining

Milling Tools

Common tools include carbide end mills, ball-nose cutters, and roughing mills. Ball-nose cutters are especially useful for smooth curved surfaces in mold cavities.

In many cases, a roughing tool is used first to remove large material volumes, followed by a finishing tool to achieve high surface accuracy.

Drill Bits

Drill bit selection strongly affects accuracy and tool life. Titanium nitride (TiN)-coated HSS drills improve durability and reduce friction, while carbide drills are preferred for hardened steels.

For example, in ejector pin hole machining, TiN-coated drills help maintain consistent diameter accuracy and reduce wear during long production runs.

EDM Electrodes

In EDM processes, electrodes are usually made from graphite or copper. The electrode must match the shape of the required cavity precisely.

For complex die-casting molds, graphite electrodes are often used due to their machinability and thermal stability.

Quality Control in CNC Machining of High - Precision Molds

Dimensional Inspection

Quality control in CNC machining of high - precision molds starts with dimensional inspection. Tools such as calipers, micrometers, and coordinate measuring machines (CMMs) are used to verify accuracy.

Even small errors from tool wear or thermal expansion can affect mold performance. Early detection allows quick corrections before final production.

Surface Finish Inspection

Surface quality is checked visually and with roughness measuring tools. Poor surface finish can cause defects in molded products and increase wear during production.

For example, removing tool marks through additional polishing can significantly improve mold release performance and final product appearance.

Material Integrity Inspection

Non-destructive testing methods such as ultrasonic testing and magnetic particle inspection are used to detect internal cracks or porosity.

These inspections ensure the mold is structurally safe and reliable before being used in mass production.

Challenges in CNC Machining High - Precision Molds

Complex Geometries and Tight Tolerances

One of the biggest challenges in CNC machining high - precision molds is handling complex shapes with very tight tolerances. Multi-axis machining and advanced programming are often required.

Even small programming errors can lead to multiple rework cycles, increasing cost and production time.

Tool Wear and Breakage

Hard materials such as tool steels cause rapid tool wear. In some cases, tool breakage can damage the mold surface and interrupt production schedules.

For example, a worn carbide end mill during steel mold machining may lead to dimensional deviation and require tool replacement and rework.

Heat Generation and Thermal Effects

Machining generates heat, which can cause thermal expansion and reduce dimensional accuracy. It may also change material properties in some cases.

Proper cooling systems and optimized cutting strategies are used to reduce heat buildup and maintain stability during machining.

Conclusion: Mastering CNC Machining for High - Precision Molds

The CNC Machining of High - Precision Molds is a highly technical process that combines advanced design, precise machining, careful tooling selection, and strict quality control.

Key takeaways include the importance of accurate CAD/CAM programming, proper material selection, optimized tooling strategies, and continuous inspection during production. Understanding these factors helps manufacturers improve efficiency, reduce costs, and achieve stable high-quality output.

By mastering these principles, companies can strengthen their competitiveness in industries that rely on precision molding and high-performance components.
