CNC Machining Process for Red Copper

Introduction to CNC Machining Process for Red Copper

The CNC Machining Process for Red Copper is a precise manufacturing method used to produce high-quality copper components for many industrial applications. Red copper is widely known for its excellent electrical conductivity, thermal conductivity, corrosion resistance, and good formability. Because of these properties, it is commonly used in electronics, plumbing systems, heat exchangers, power systems, and industrial machinery.

CNC (Computer Numerical Control) machining allows manufacturers to shape red copper into accurate and complex parts with consistent quality. Compared with manual machining, CNC machining improves precision, reduces waste, and supports mass production. In modern industries, CNC-machined red copper parts play an important role in ensuring product performance, stability, and efficiency.

The Significance of CNC Machining for Red Copper Parts

The significance of CNC machining for red copper parts lies in its ability to combine material advantages with manufacturing precision. Red copper is soft and ductile, which makes it easy to shape but also more challenging to control during machining. CNC technology solves this issue by providing stable cutting paths and controlled parameters.

In real-world applications, red copper parts are often used in environments where heat transfer or electrical conductivity is critical. For example, in heat exchangers, CNC-machined copper parts ensure efficient thermal performance. In electronics, they support stable electrical connections. In plumbing systems, they help ensure corrosion-resistant fluid flow components.

Overall, CNC machining ensures that red copper components meet strict dimensional and performance requirements across different industries.

Steps in CNC Machining Red Copper

The steps in CNC machining red copper must be carefully planned to ensure accuracy, surface quality, and material performance. Below are the main stages of the process.

Design and CAD/CAM Programming

The process begins with CAD (Computer-Aided Design), where engineers create a detailed 3D model of the red copper part. This design considers function, operating environment, and industry standards. For example, a multi-component heat sink for an electronic device must be designed with precise fins and channels to maximize heat dissipation.

Next, CAM (Computer-Aided Manufacturing) software converts the CAD model into CNC machine instructions. Programmers define toolpaths, cutting speeds, feed rates, and spindle speeds. Because red copper is soft, careful parameter selection is required to prevent over-cutting or surface tearing. Lower feed rates and optimized tool paths help maintain accuracy and surface quality.

Material Selection and Preparation

Choosing the correct grade of red copper is essential for performance. High-purity copper is often used in electrical and thermal applications, while other grades may be selected for improved strength or cost efficiency.

After selection, the material is cut into suitable sizes for machining. In some cases, pre-treatment such as annealing is used to improve machinability by reducing internal stress. However, higher-purity copper requires careful handling to avoid contamination or damage that could affect conductivity.

Proper material preparation directly influences machining stability and final part quality.

Machining Operations

Milling

Milling is used to create flat surfaces, slots, pockets, and complex 3D shapes. Carbide-tipped end mills are commonly used due to their durability. Since red copper is soft, chip control is important to avoid surface scratches.

Typical machining settings include higher cutting speeds and lower feed rates. This helps achieve a smooth surface finish while preventing tool clogging from copper chips.

Turning

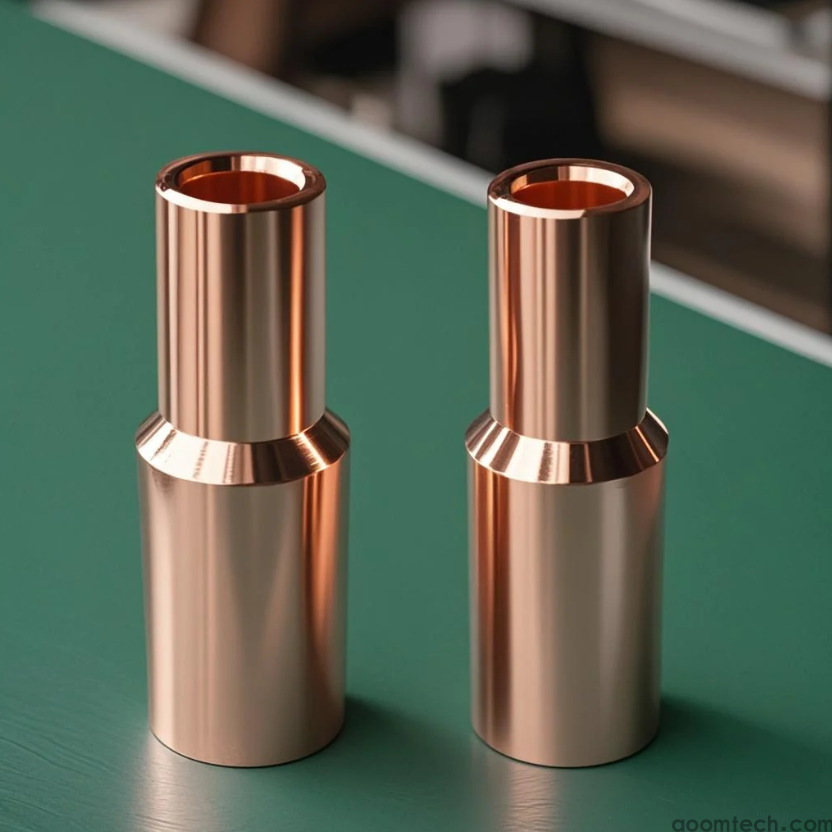

Turning is used for cylindrical parts such as shafts and bushings. The red copper workpiece rotates while the cutting tool removes material.

Carbide inserts are commonly used for turning operations. Precision is important to ensure concentricity and smooth surface finish. Proper tool geometry helps control chip formation and reduces surface tearing.

Drilling

Drilling is used to create holes for fasteners, fluid flow, or assembly purposes. High-speed steel (HSS) or carbide drill bits are typically used.

Coolant application is important to reduce heat buildup and prevent tool wear. Proper feed pressure ensures clean hole edges and reduces the risk of drill breakage.

Finishing Operations

After machining, finishing operations improve both appearance and performance. Polishing is often used to achieve a smooth surface, which is important for reducing friction and improving conductivity.

Plating, such as nickel plating, can improve corrosion resistance and electrical performance. In heat transfer applications, a smooth plated surface can also enhance thermal efficiency.

These finishing steps ensure that the final red copper parts meet both functional and aesthetic requirements.

Tooling for CNC Red Copper Machining

Milling Tools

Carbide end mills are the most common choice for red copper machining. They offer durability and precision. Ball-nose mills are used for curved or complex surfaces.

For example, a carbide ball-nose mill can be used to produce smooth decorative copper parts or precision heat sink fins with consistent surface quality.

Drill Bits

HSS drill bits with coatings like titanium nitride (TiN) reduce friction and improve wear resistance. Carbide drill bits are preferred for high-precision or high-volume production.

In heat exchanger production, TiN-coated drills help achieve accurate hole placement while maintaining long tool life.

Turning Inserts

Carbide turning inserts are selected based on geometry, rake angle, and edge radius. These factors influence chip control and surface finish.

Proper insert selection improves machining efficiency and ensures high-quality cylindrical copper parts with smooth finishes.

Quality Control in CNC Red Copper Part Production

Dimensional Inspection

Dimensional accuracy is checked using calipers, micrometers, and coordinate measuring machines (CMM). This ensures that parts meet design specifications.

For example, in-process inspection may detect dimensional errors early, allowing adjustments before mass production continues.

This is a key part of quality control in CNC red copper part production.

Surface Finish Inspection

Surface quality is evaluated visually and with surface roughness testers. A poor surface finish can reduce conductivity and increase friction.

If defects such as tool marks are found, additional polishing or process adjustments are applied to improve quality.

Material Integrity Inspection

Non-destructive testing methods such as ultrasonic testing or eddy current testing are used to detect internal cracks or porosity.

For critical applications like electrical systems, detecting internal defects ensures safety and reliability before installation.

Challenges in CNC Machining Red Copper

Chip Formation and Evacuation

One of the main challenges in CNC machining red copper is chip control. Copper chips are often long and stringy, which can wrap around tools and affect surface quality.

In some cases, production must be paused to remove chip buildup, leading to delays and reduced efficiency.

Tool Wear

Although red copper is soft, it can still cause tool wear at high speeds. Carbide tools may require frequent replacement in large-scale production.

This increases tooling costs and requires careful monitoring of tool life.

Surface Finish Requirements

Achieving a high-quality surface finish is difficult because red copper is prone to scratching and tearing. Incorrect cutting parameters can quickly lead to surface defects.

Adjustments in speed, feed rate, and tool selection are often required to achieve the desired finish.

Conclusion: Mastering the CNC Machining Process for Red Copper

The CNC Machining Process for Red Copper is essential for producing high-performance components used in modern industries. From design and material selection to machining, tooling, quality control, and finishing, every step plays a key role in ensuring final part quality.

By understanding the steps in CNC machining red copper, selecting proper tooling, and applying strict inspection methods, manufacturers can improve efficiency and reduce defects. At the same time, addressing challenges in CNC machining red copper such as chip control and tool wear helps maintain stable production.

In summary, successful red copper machining depends on careful planning, precise control, and continuous process optimization. Manufacturers who apply these principles can achieve high-quality results and improve the performance of their final products across electronics, plumbing, and thermal systems.
