What should be noted when CNC machining stainless steel

Views :
Update time : 2026-06-21

What should be noted when CNC machining stainless steel is a practical question, because stainless steel is not difficult in the same way as mild steel or aluminum. It often creates higher cutting forces, more heat near the cutting edge, more risk of work hardening, and more trouble with chip control. If the setup, tool, or parameters are not right, tool life drops fast and surface quality becomes unstable. The good news is that these problems can be controlled with the right grade-based plan, correct tool geometry, disciplined cutting data, and strong chip evacuation.


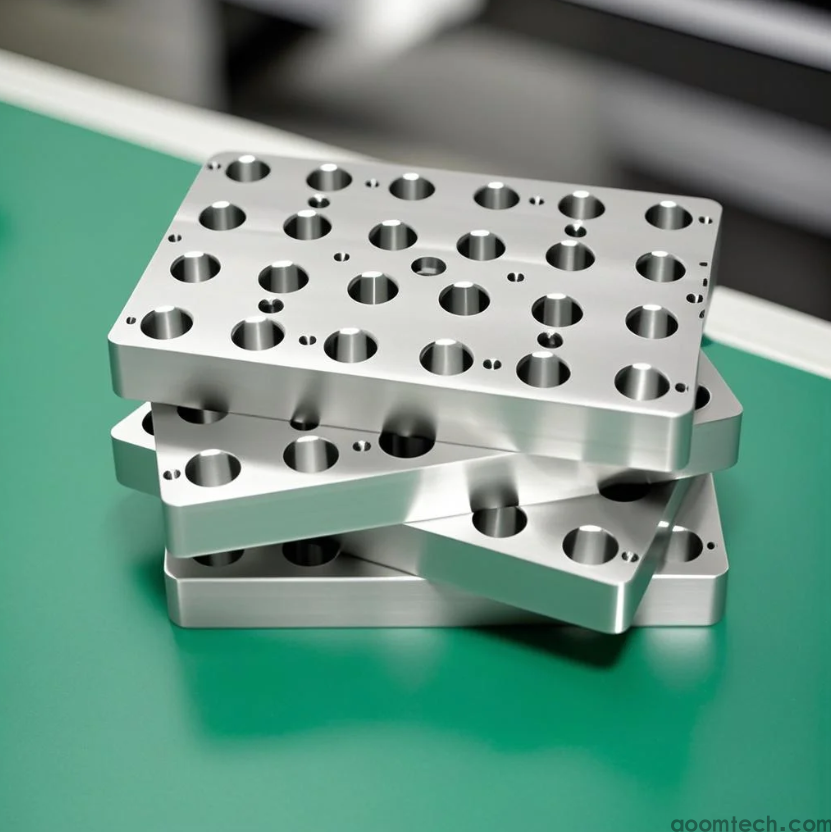

Why stainless steel needs a different plan

Stainless steel is not one single material. In machining, the biggest families are ferritic and martensitic grades, austenitic grades such as 304 and 316, and duplex grades. These groups behave differently in the cut, so the first rule is simple: do not program “stainless steel” as one generic material. Sandvik notes that each family has its own machining recommendations, while Outokumpu shows that duplex grades have much higher strength than common austenitic grades, which changes cutting force and tool load.

Austenitic stainless steels are often the most troublesome in general machining because they have high work-hardening behavior and lower thermal conductivity than ferritic stainless steels or carbon steel. In real workshop terms, that means heat stays close to the cut instead of leaving quickly through the workpiece. Seco also notes that this heat shortens tool life if it is not removed efficiently.

Duplex stainless steels bring a different problem. They are stronger, so cutting forces are higher. Outokumpu states that duplex grades typically have about twice the proof stress of austenitic grades, and its machining guideline says stable setup, sharp tools, and coolant are especially important for this reason.

Martensitic stainless steels can also be demanding, especially in hardened condition. Sandvik recommends considering CBN grades for martensitic steels at about 55 HRC and above during turning.



Know the grade before you cut

Before buying tools or setting feeds and speeds, confirm the exact stainless grade and the material condition. A shop that treats 303, 304, 316, 17-4PH, 2205, and 410 as if they behave the same will usually see unstable cycle times and repeated tool changes. Outokumpu notes that machinability changes with alloy content, and its duplex guidance shows machinability drops as alloying level increases.

  • Austenitic grades usually need the most attention for work hardening, built-up edge, and heat concentration near the tool.

  • Ferritic and martensitic grades are grouped differently from austenitic grades in Sandvik’s guidance, and hardened martensitic grades may need stronger edge protection or CBN finishing tools.

  • Duplex grades need more rigid setup and lower starting speeds than common austenitic grades because of their higher strength and more demanding chip control.

If you are changing from one stainless grade to another, do not only change cutting speed. Re-check insert grade, edge sharpness, nose radius, coolant strategy, and chipbreaker style as well. This is one of the simplest ways to avoid the common pain point of “the same program worked last week, but the current batch is failing today.” Sandvik and Outokumpu both tie stainless machining stability closely to correct tool choice for the material family.



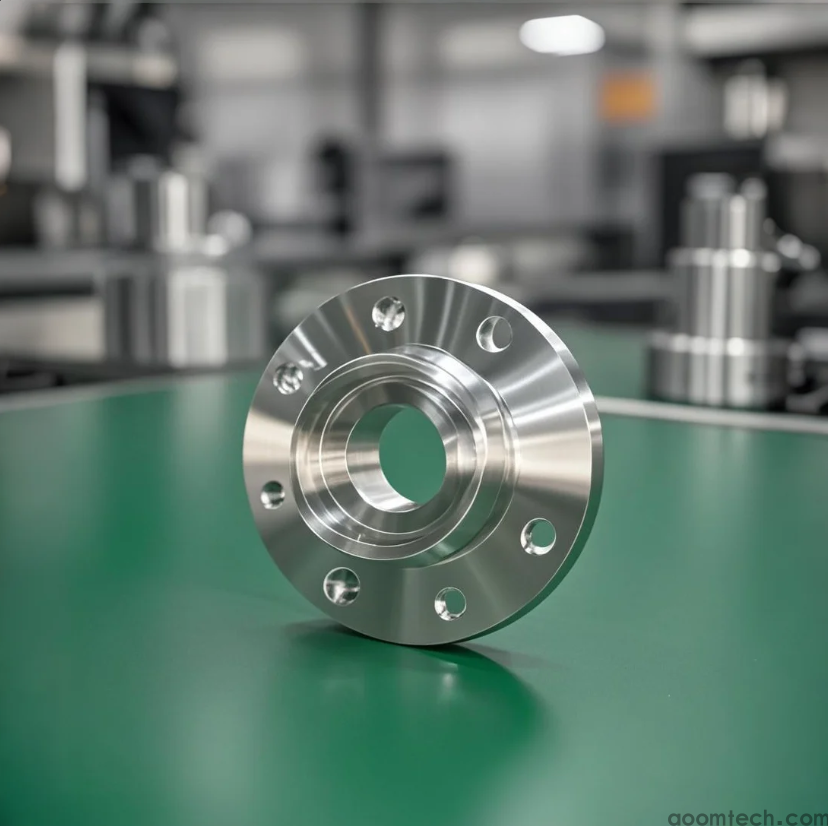

Tool selection tips for CNC machining stainless steel

Tool selection tips for CNC machining stainless steel start with one main idea: use sharp tools that cut cleanly instead of rubbing the material. Seco states that cutting-edge sharpness is critical because a sharper tool cuts rather than deforms the stainless steel, which reduces heat generation. Outokumpu gives the same advice for duplex stainless steel and says sharp tools help minimize work hardening.

For turning austenitic stainless steel, Sandvik recommends stainless-specific CVD or PVD grades, coolant, and sharp edges or positive rake geometries to reduce smearing and built-up edge. It also recommends round inserts or small entering angles to help prevent notch wear.

For milling stainless steel, Sandvik recommends round insert cutters when possible, and for shallow cutting depths below 5 mm it recommends an entering angle below 45 degrees, with a round, positive-rake insert as a practical option. It also stresses cutter accuracy in radial and axial directions so that tooth load stays even. This matters because uneven tooth load quickly causes chipping, chatter, and early edge failure in stainless steel.

For drilling, internal coolant is usually the safer choice. Sandvik states that internal coolant is preferred to avoid chip jamming, especially in longer-chipping materials and in holes deeper than 3 times the drill diameter. Seco also notes that coolant and lubrication improve tool life, chip evacuation, and hole quality, especially in stainless and other tough materials.

  • Use carbide for most production work in stainless steel. Industry guidance from IMOA and Outokumpu shows carbide tools support much higher cutting speeds than HSS in both austenitic and duplex stainless steel.

  • Use sharp, positive cutting geometry when built-up edge or smearing is a problem.

  • Keep nose radius only as large as needed. For duplex turning, Outokumpu recommends the smallest possible nose radius to avoid vibration.

  • Choose tools with through-coolant or precision coolant when chip jamming, crater wear, or deep-hole drilling is a concern.


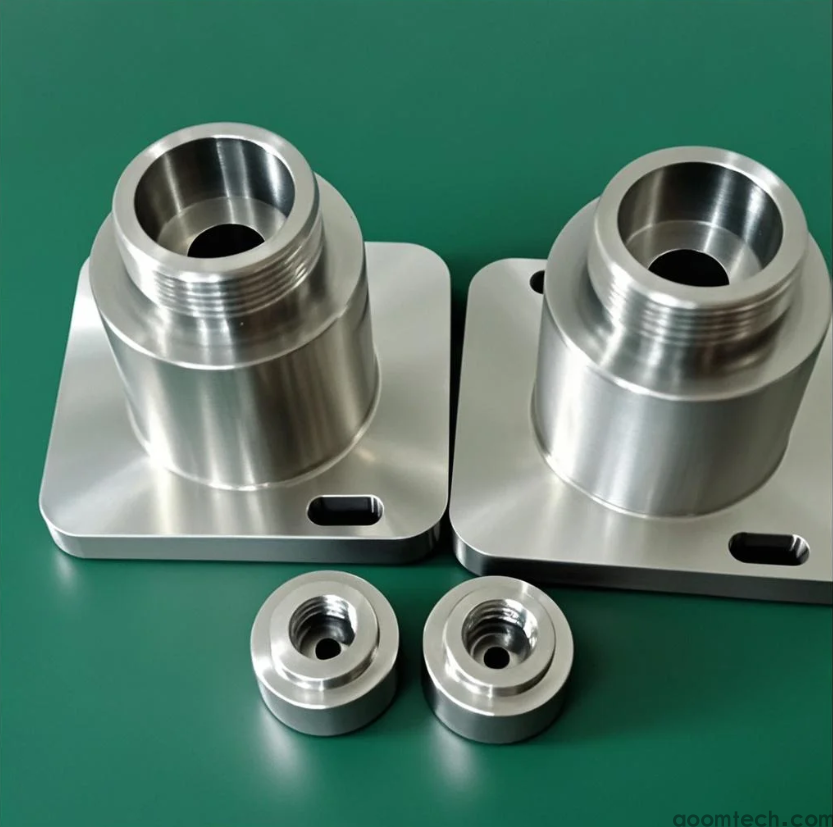

Cutting parameter considerations in CNC machining stainless steel

Cutting parameter considerations in CNC machining stainless steel are often misunderstood. Many shops become too careful and cut too lightly. That usually makes stainless steel worse, not better, because light rubbing cuts promote work hardening, unstable chip breaking, and heat concentration. Seco advises using the largest practical depth of cut and feed rate to move more heat away in the chips and to reduce the number of passes. Fewer passes also reduce the chance of repeatedly cutting into a work-hardened layer.

At the same time, parameters still have to match surface finish needs, spindle power, fixture rigidity, and part geometry. Seco explicitly notes these practical limits, so the right approach is not “always push harder,” but “avoid timid cuts and stay inside the machine’s stable range.”

For turning quality and chip control, Sandvik recommends starting at a low feed rate to secure the insert and surface finish, then increasing feed to improve chip breaking. It also recommends using a cutting depth larger than the nose radius and avoiding cutting speeds that are too low.

Useful starting windows are available from industry guides, but they should be treated as starting values, not fixed rules. In IMOA’s practical guide for austenitic stainless steels, carbide rough turning starts around 120 to 150 m/min with feed around 0.3 to 0.6 mm/rev and depth of cut around 2 to 5 mm, while carbide face milling roughing starts around 160 to 190 m/min with feed around 0.2 to 0.4 mm per tooth and depth of cut around 2 to 5 mm.

For duplex 2205, Outokumpu gives lower carbide starting values. Its guide shows turning around 55 m/min for roughing, 85 m/min for medium cuts, and 100 m/min for finishing, along with roughing feed around 0.8 mm/rev, medium feed around 0.4 mm/rev, and finishing feed around 0.1 mm/rev. The same guide gives carbide milling starting values around 55 to 90 m/min depending on roughing or finishing, and drilling starts around 45 m/min with external coolant or 60 m/min with internal coolant.

In practice, the safest tuning method is simple: lock the tool, fixture, and coolant plan first; start from the toolmaker or grade producer’s range; then adjust one variable at a time. If speed, feed, coolant pressure, and tool overhang all change together, it becomes very hard to find the real cause of failure. This step-by-step approach is an inference from the way Sandvik, Seco, IMOA, and Outokumpu all present troubleshooting by wear pattern and machining condition.


Heat dissipation methods during CNC machining of stainless steel

Heat dissipation methods during CNC machining of stainless steel are critical because heat is one of the main reasons for fast edge wear, poor finish, and work hardening. The problem is strongest with austenitic grades, which have lower thermal conductivity than ferritic stainless steels and carbon steel. Seco explains that austenitic stainless steel combines low thermal conductivity with high deformation resistance, so excessive heat is generated and can remain in the cut zone.

The first heat-control method is sharp cutting action. A sharp edge reduces rubbing and plastic deformation, which lowers heat generation. The second method is enough chip thickness. Seco notes that larger chip volumes carry away more heat, so practical feed and depth should be as high as the process safely allows.

The third method is proper coolant delivery. Seco recommends a high-quality oil/water emulsion with at least 8 to 9 percent oil for austenitic stainless steel machining, higher than the concentration used in many general machining jobs. Sandvik states that high-pressure coolant in the 70 to 80 bar range is common on modern machines, that 80 bar is enough for most jobs, and that tools designed for precision coolant can improve chip control, reduce temperature, and lower cutting forces.

For drilling, internal coolant is especially valuable. Sandvik says it helps prevent chip jamming in the flute, and Seco states that coolant and lubrication are especially important in drilling because most of the energy turns into heat.

There is one useful nuance for milling. IMOA’s austenitic stainless steel fabrication guide notes that, in face milling roughing, dry machining can sometimes help achieve the right chip and insert interface temperature so chips do not stick to the edge, while finishing can benefit from coolant to help eject chips. This does not mean “run all stainless dry.” It means dry rough milling can be a controlled option in some face-milling cases, while turning and drilling stainless steel usually benefit strongly from coolant.



Chip removal techniques for CNC-machined stainless steel

Chip removal techniques for CNC-machined stainless steel are just as important as tool grade. Poor chip control causes broken edges, scratched surfaces, chip nests around the part, and unexpected machine stops. Sandvik says chip control is one of the most important factors in turning quality, while its drilling and milling guidance links chip jamming directly to lower tool life, lower hole quality, and process instability.

For turning, use a chipbreaker when needed, keep the depth of cut above the nose radius when possible, and raise feed if chips become too long. IMOA says chip breakers are often required in turning austenitic stainless steels, and Outokumpu’s duplex guideline says long chips can lead to tool breakage and that increasing feed helps avoid this.

For drilling, use the shortest drill you can, keep setup rigid, and make sure chip evacuation is working before running long unattended cycles. Sandvik states that chip jamming affects hole quality, drill life, and reliability, and it recommends correct drill geometry, correct cutting data, and a rigid, accurate holder with minimum runout. Internal coolant is preferred, especially for deeper holes.

For milling pockets, slots, and deeper cavities, avoid re-cutting chips. Sandvik recommends effective chip evacuation with compressed air or copious cutting-fluid flow, preferably internal coolant, plus toolpath changes and splitting deep cuts into several passes. It also recommends minimizing tool protrusion and improving clamping when vibration appears.

  • If chips are long and stringy, first check whether feed is too low.

  • If chips are sticking to the edge, check whether cutting speed is too low or the edge is too blunt. Outokumpu links low speed to sticking, and Sandvik recommends sharp, positive geometries to reduce smearing and built-up edge.

  • If chips are re-cut in pockets, improve coolant or air flow, shorten the tool if possible, and change the toolpath to reduce chip crowding.

Good chip removal also protects surface finish. When the edge is clean and chips leave the cut quickly, the process is smoother, the part surface is less likely to be scratched, and variation from part to part becomes much smaller. That is why chip control is not only a productivity topic; it is also a quality topic.


A practical shop-floor checklist

If you want a short answer to What should be noted when CNC machining stainless steel, use this checklist before releasing a job to production. It covers the problems that most often cause rework, short tool life, and unstable part quality. The points below are drawn from the machining guidance of Sandvik, Seco, Outokumpu, Nickel Institute, and IMOA.

  1. Identify the exact grade and condition. Austenitic, duplex, ferritic, martensitic, and hardened stainless steels should not share one default program.

  2. Use stainless-specific tooling. Favor sharp carbide edges, positive rake where needed, and correct chipbreaker geometry. For hardened martensitic grades, consider CBN in the right range.

  3. Keep the setup rigid. Stainless machining becomes unstable quickly when tool overhang is too long or fixturing is weak. Both IMOA and Outokumpu stress rigidity and low vibration.

  4. Do not cut too lightly. Increase feed and depth enough to get proper chip formation and reduce repeated cutting into work-hardened material.

  5. Use coolant intelligently. Turning and drilling usually benefit from coolant, while some rough face-milling cases in austenitic grades may run better dry. Use internal or precision coolant when chip jamming or heat is a problem.

  6. Watch the wear pattern. Outokumpu notes that flank wear is the preferred, stable wear mode; built-up edge often points to speed that is too low; long chips often mean feed is too low; and plastic deformation in turning can require lower speed and feed.

  7. Change only one variable at a time. That is the fastest way to find the true cause when the job starts producing heat marks, chatter, long chips, or early insert failure. This is a practical inference from the troubleshooting structure used in the cited technical guides.

In everyday production, the most reliable strategy is simple: know the stainless grade, choose a sharp and suitable tool, avoid rubbing cuts, move heat away with the chip and coolant, and never ignore chip evacuation. If you do those five things well, CNC machining of stainless steel becomes far more predictable, even on parts that used to cause repeated scrap or tool breakage.
