Medical Brass CNC Machining Parts: Master Tight Tolerances & Zero-Burr Quality

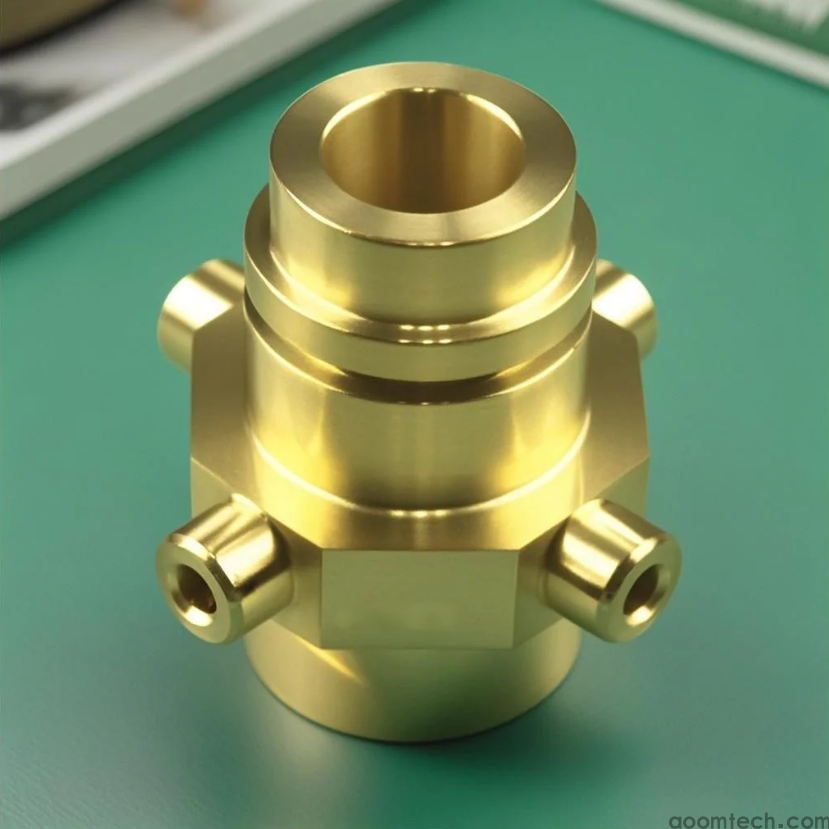

Last Tuesday, a client sent over a batch of brass manifold block drawings for a surgical fluid control unit. The tightest tolerance was holding ±0.005 mm on a 2 mm threaded bore, with an absolute zero-burr spec inside the internal fluid channel.

If you’ve spent enough time around 5-axis setups or multi-axis Swiss-type lathes, you know brass cuts like butter compared to titanium or 316L stainless steel. But in medical device manufacturing, "easy to machine" does not mean "easy to pass quality control."

Medical brass CNC machining parts sit at a unique sweet spot in healthcare engineering: unmatched machinability combined with strict antimicrobial requirements and pressure-tight safety standards. Here is how we hit those micrometer tolerances daily on the shop floor without blowing up your piece-part cost.

Key Benefits of Precision Brass Medical Components in Device Manufacturing

Why do surgical equipment engineers and medical gas regulators still select brass alloys—such as C36000 or eco-friendly lead-free C27450—over stainless steel for critical components?

• Natural Antimicrobial Properties: Copper alloys inherently break down pathogen cell walls. For ventilator connectors, medical gas outlets, and surgical fluid valves, brass provides a built-in biological defense line.

• Superior Machinability & Chip Control: Free-cutting brass yields short, brittle chips during high-speed turning. This minimizes tool wear, eliminates chatter marks, and achieves surface finishes down to Ra 0.4 µm directly off the tool.

• Thermal & Electrical Conductivity: Essential for diagnostic sensor housings where rapid heat dissipation prevents electronic measurement drift.

Medical Brass Alloys Comparison: Material Selection for Machining

Selecting the right alloy dictates cutter life, spindle speeds, and regulatory clearance. Below is how we evaluate brass alloys for CNC turning and milling:

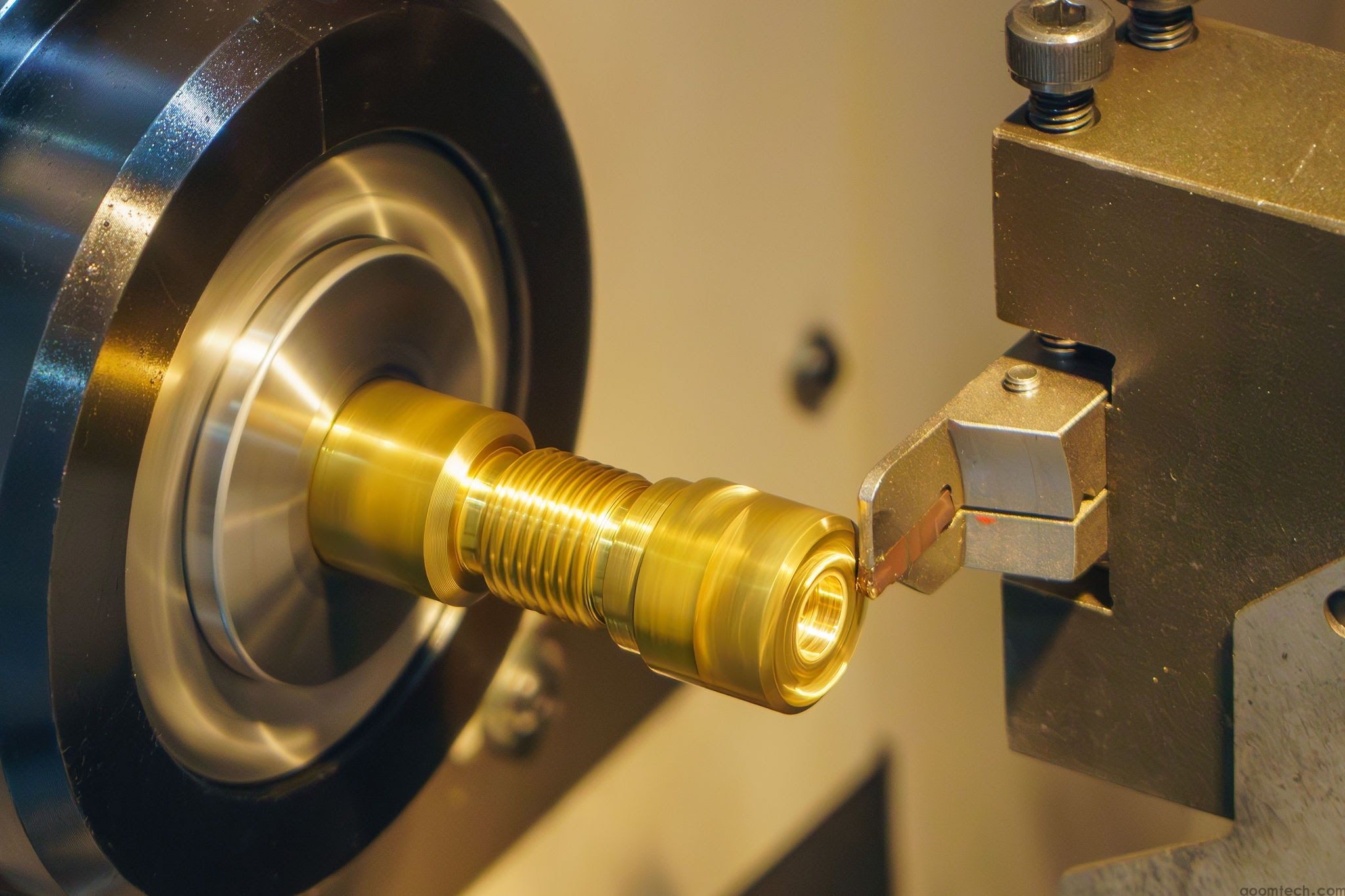

Overcoming Manufacturing Challenges in Custom CNC Swiss Machining Brass Fittings

Turning high-volume micro components—such as barb fittings, needle valve seats, and luer lock adapters—requires specialized tooling strategies to prevent scrap.

1. Eliminating Micro-Burrs in Internal Threads

A single microscopic burr inside an oxygen regulator line can detach, clog a downstream micro-sensor, or rupture a seal.

• High-Pressure Coolant Delivery: We use 1000 PSI high-pressure oil-based coolant directed right at the cutting edge to snap off micro-chips before they weld to the part.

• Thermal Deburring & Ultrasonic Cleaning: For intricate internal intersections, parts undergo automated deburring followed by multi-tank ultrasonic degreasing to guarantee zero particulate residue.

2. Controlling Thermal Expansion on Thin-Wall Micro Parts

Brass has a thermal expansion coefficient around 20 µm/m°C. When machining thin-walled tubes down to 0.5 mm wall thickness, spindle heat transfer will throw off dimensions.

• Swiss Lathe Guide Bushing Support: We route bar stock through Swiss sliding-headstock lathes. Supporting the raw bar stock directly adjacent to the cutting tool prevents workpiece deflection under load.

• Climate-Controlled Machining Environment: Keeping shop-floor temperatures stable within ±1°C ensures morning runs match afternoon runs down to the micron.

Quality Assurance & ISO 13485 Compliance for Healthcare Parts

Cutting metal is only half the job. In medical supply chains, complete lot traceability and quality documentation are mandatory.

(外链建议: 此处建议添加指向 ISO 官方权威链接 <a href="[https://www.iso.org/standard/59752.html](https://www.iso.org/standard/59752.html)" rel="nofollow">ISO 13485 Medical Device Standard</a>)

Every batch of medical brass CNC machining parts passing through our inspection lab undergoes rigorous validation:

1. Material Certification (MTR): Full chemical breakdown reports verifying compliance with lead-free regulations (RoHS / REACH).

2. Optical & CMM Inspection: Coordinate Measuring Machine (CMM) verification for GD&T specs (Concentricity, Runout, Cylindricity).

3. Passivation & Surface Treatment: Electroless nickel plating or custom cleaning protocols tailored to medical device packaging.

Frequently Asked Questions About Medical Brass CNC Machining Parts

Q1: Why use lead-free brass instead of standard C36000 brass for medical components?

A: Lead-free brass alloys like C27450 or C69300 are required for medical applications involving direct contact with human fluids or bio-pharmaceuticals. They meet strict FDA, RoHS, and REACH guidelines by capping lead content below 0.25%, preventing toxic heavy metal leaching.

Q2: What tolerances can be held on micro brass lathe parts for healthcare?

A: Using multi-axis CNC Swiss machining, precision tolerances can be held to ±0.002 mm (2 microns) on critical diameters, and surface finishes can reach Ra 0.2 – 0.4 µm without requiring secondary hand polishing.

Q3: How do you prevent thread galling and burrs on internal brass features?

A: We utilize customized micro-grain carbide inserts with specialized rake angles for brass, coupled with high-pressure oil coolant flushing at 70+ bar. Post-processing ultrasonic wash cycles remove any residual microscopic burrs.

Partner with an Experienced ISO 13485 Medical Brass Machining Supplier

Navigating tight tolerances, zero-burr specifications, and lead-free compliance doesn't have to stall your product rollout. Whether you need a rapid prototype batch of custom fluid connectors or a production run of 100,000 micro-turned valve stems, our engineering team optimizes every toolpath for speed and repeatability.

Have an active drawing or CAD file? Upload your drawings today to receive a detailed DFM (Design for Manufacturability) report and a competitive quote within 24 hours.
