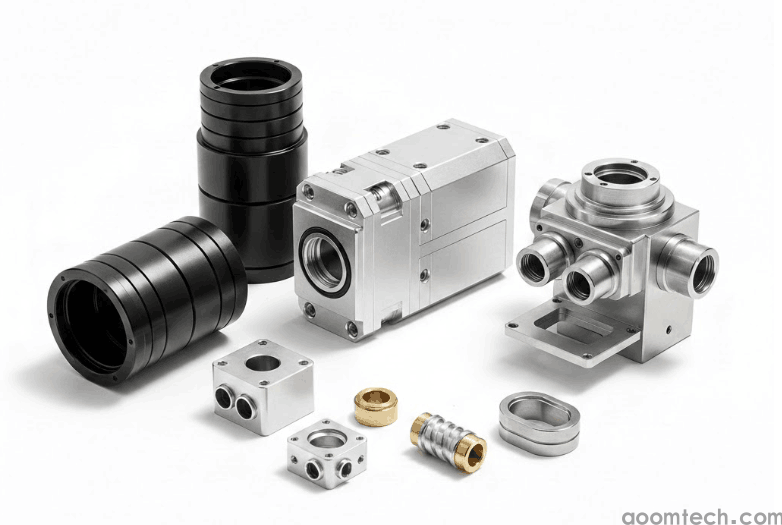

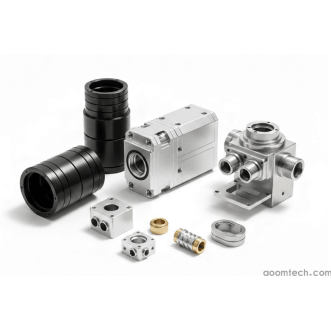

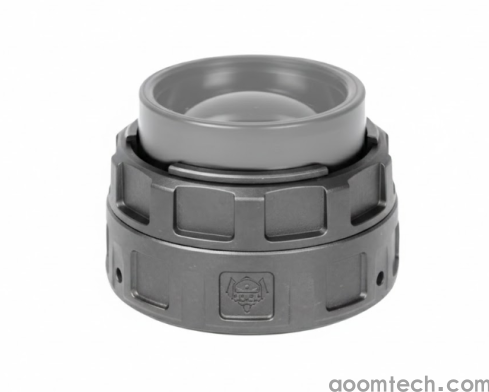

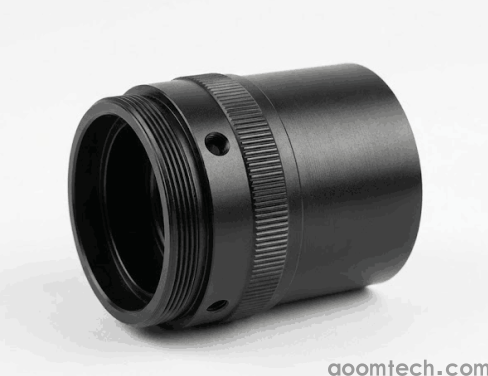

Custom CNC Machining Optical Housings: Precision Machine Shop Services for Advanced Optics

In LiDAR systems, medical endoscopes, industrial vision, and infrared gimbals, the performance of your optical system hinges on the precision of the optical housing. A misalignment as small as a few microns or unwanted light reflection inside the barrel can distort sensor data and ruin image clarity.

Backed by years of shop-floor experience in tight-tolerance component machining, we deliver professional, reliable cnc machining optical housings for engineering teams and OEMs worldwide. From quick-turn prototypes to scalable production runs, we provide the manufacturing rigor your optics demand.

How We Solve the Tough Challenges in Optical Housing Machining

Optical housings feature thin walls, multi-stepped internal bores, and strict geometric dimensioning and tolerancing (GD&T). Here is how our shop floors tackle these challenges to ensure zero-defect assembly:

1. Micron-Level Coaxiality & Geometric Tolerances

Optical assemblies hold multiple lens elements, spacers, and image sensors along a single optical axis. To keep light transmission perfectly aligned, we run these jobs on multi-axis 5-axis CNC machining centers and turn-mill machines.

• Single-Setup Machining: By completing internal bores, threads, and datum faces in a single clamping, we eliminate secondary locating errors and keep bore coaxiality and runout within $\le 0.005\text{mm} - 0.01\text{mm}$.

• Precision Sealing Surfaces: We cut ultra-flat O-ring grooves and mating shoulders to ensure IP67/IP68 dustproof and waterproof ratings.

2. Thin-Wall Distortion Control & Ra 0.4 Surface Finish

For lightweight enclosures with wall thicknesses down to $0.8\text{mm} - 1.2\text{mm}$, standard clamping forces will warp the part instantly. We rely on proven shop techniques:

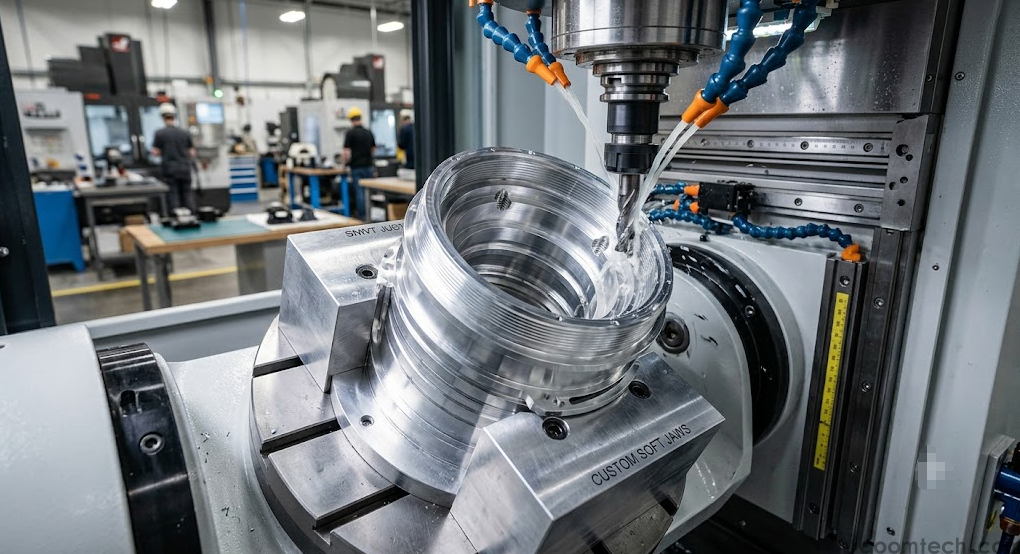

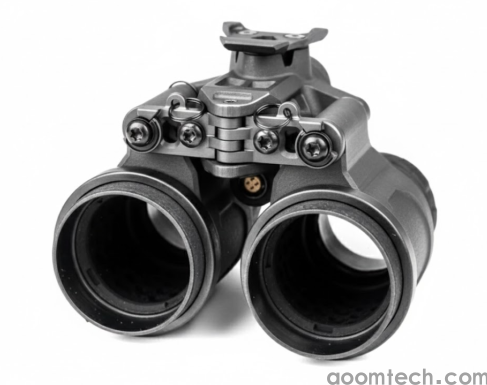

• Custom Full-Wrap Soft Jaws: We machine dedicated pie-shaped aluminum soft jaws to distribute clamping pressure evenly, eliminating the out-of-round distortion common with standard 3-jaw chucks.

• High-Speed Diamond Tooling: Utilizing PCD inserts and high-RPM spindles, we achieve a smooth Ra 0.4 surface finish on critical seating faces, preventing vacuum and pressure leaks around seals.

3. Surface Finishing & Anodizing Thickness Compensation

Internal stray light is the enemy of optical sensors. We offer complete post-processing and account for plating build-up right from the CAD/CAM stage:

• Anti-Reflective Finishes: Options include light-baffle micro-grooves, 120#–150# fine glass bead blasting, and matte black anodizing.

• Plating Compensation in CAM: Hard black anodizing ($20\mu\text{m}$) grows $50\%$ outward and $50\%$ inward. We offset toolpaths during CNC programming so your threads run smoothly and lens cells press-fit perfectly after anodizing.

Target Applications & Industry Experience

We regularly manufacture custom optical enclosures across demanding sectors:

Why Partner With Us for Your Optical Housing Projects?

1. In-House DFM Engineering: Before cutting chip, our engineers review your step files for tool reach, deep-pocket radii, and tolerance stack-ups—helping you cut machining costs by 15% to 30% without sacrificing optical performance.

2. Prototype to High-Volume Production: Flexible capacity covering 1-piece R&D prototypes, quick design iterations, and multi-thousand-piece production runs.

3. Rigorous Quality Assurance: Equipped with CMM, optical comparators, and surface roughness testers. Full inspection reports accompany every shipment.

Ready to Start Your Optical Housing Project?

If you are looking for a precision machine shop that understands the tight tolerances, anodizing allowances, and stray-light control needed for cnc machining optical housings, we are ready to help.

Send your STEP/IGES/DWG files to our engineering team today for a free DFM review and detailed quote within 24 hours.
